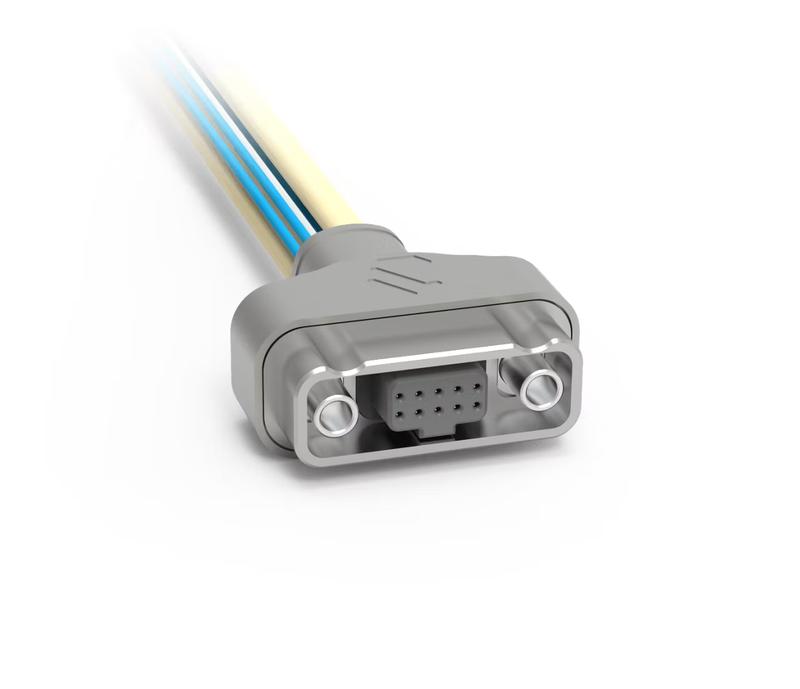

V2C-02-05-50-FL-FL-262030
AirBorn verSI Series
Model
V2C-02-05-50-FL-FL-262030
V2C-02--05-50-FL-FL-262030
Supplier
Shenzhen Zhilian Technology Co., Ltd.
Stock Status
Inquiry Required
Physical Characteristics
cableLength
0.10m
Circuits (Loaded)
10
Max Circuits
10
Resin Color
Gray
durabilityMatingCyclesMax
2500
Gender
Female-Female
Lock
Yes
lockingType
Locking Screws
Metal Material
Beryllium Copper
Plating (Mating End)
Gold
Resin Material
Liquid Crystal Polymer (LCP)
materialShell
Aluminum Alloy
numberOfColumns
5
Number of Rows
2
orientation
Straight-to-Straight
Packaging
Bag
Pitch
0.050" (1.27mm)
pitchTerminationInterface
0.050" (1.27mm)
platingMinMating
50µ”
platingShell
Electroless Nickel
singleEnded
No
Operating Temperature
-55° to +125°C
waterproofDustproof
No
wireCableType
Differential Pairs
Wire Size (AWG)
26
Electrical Characteristics
Rated Current (per Contact)
2.0A
dataRate
20.0 Gbps
Rated Voltage
600V
Documents & Resources
1 DocumentsDatasheet
(datasheet)Compliance
EU RoHS
EU RoHS Directive
Not Reviewed
REACH SVHC
EU REACH Regulation
Not Reviewed
EU ELV
EU ELV Directive
Not Reviewed
California Prop 65
CA Proposition 65
China RoHS
China RoHS
Not Reviewed
Low-Halogen
Low Halogen Standard
Not Reviewed
GADSL/IMDS
GADSL
No tooling data available
Additional Info
3D Model
Unavailable
About V2C-02-05-50-FL-FL-262030
Shenzhen Zhilian Technology Co., Ltd. professionally supplies V2C-02-05-50-FL-FL-262030 (AirBorn verSI Series), This is a Molex brand 连接器 (通用) connector. AirBorn verSI Series Jumper, 2x5 with Twinax
Technical features: Max circuits 10; Pitch 0.050" (1.27mm); Type: Female-Female; Operating temp -55° to +125°C; Rated current 2.0A; Rated voltage 600V;
